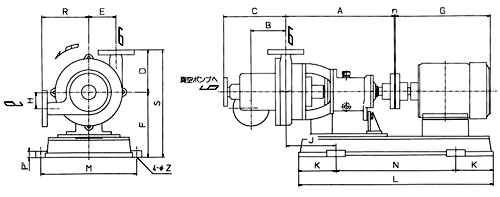

Selection chart & Outer dimensions
ASP type
| Model No. |
Specifications ( normal water ) |
Base plate |
Motor |
Weight
(kg) |
Flow rate
(L/min) |
Total head
(MPa) |
Rotation speed
(min-1) |
Bore
Suction/Discharge/VP |
A |
B |
C |
D |
E |
F |
G |
K |
L |
M |
N |
P |
P' |
S |
J |
Frame
No. |
Out put
(kW) |
| ASP-0310 |
35 |
0.1 |
2900 |
25 /25 /25 |
217.5 |
92.5 |
170 |
160 |
90 |
130 |
55 |
170 |
880 |
350 |
540 |
82 |
23 |
422 |
115 |
112M |
3.7 |
170 |
| ASP-0510 |
60 |
0.1 |
2900 |
50 /40 /40 |
255 |
120 |
170 |
195 |
110 |
170 |
52.5 |
220 |
1130 |
525 |
690 |
112 |
30 |
477 |
50 |
132S |
7.5 |
230 |
ASP-S type (Sanitary specification)
| Model No. |
Specifications ( normal water ) |
Base plate |
Motor |
Weight
(kg) |
Flow rate
(L/min) |
Total head
(MPa) |
Rotation speed
(min-1) |
Bore
Suction/Discharge/VP |
A |
B |
C |
D |
E |
F |
G |
K |
L |
M |
P |
S |
J |
Frame
No. |
Out put
(kW) |
| ASP-0310S |
35 |
0.1 |
2900 |
1S/1S/1S |
245 |
120 |
170 |
160 |
95 |
110 |
55 |
80 |
800 |
300 |
257 |
587 |
285 |
112M |
3.7 |
185 |
| ASP-0510S |
60 |
0.1 |
2900 |
2S/1.5S/1.5S |
255 |
143 |
170 |
190 |
110 |
115 |
52.5 |
80 |
617 |
321 |
132S |
7.5 |
190 |
| ASP-0610S |
90 |
0.1 |
2900 |
2.5S/2S/2S |
319 |
160 |
195 |
225 |
125 |
145 |
60 |
180 |
1100 |
400 |
280 |
700 |
270 |
160M |
15 |
350 |
Note:
Specifications (flow rate, total head) and motor output power (kW) shown
above are based on normal water at 20 degree C, degassed to the level of
approx. 2mg/L. Such specifications and motor output power vary depending
on viscosity, specific gravity and required level of degassing of the actual
liquid handled. Please ask for details.
Specifications stated here may be subject to change without notice due
to product improvement.
|
|
