Double Suction Volute Pump


Double Suction Volute Pump
HD type

Horizontally split type with optional self-priming capability

Top page
& Site map
Contact us


Structure

Double Suction Volute Pump

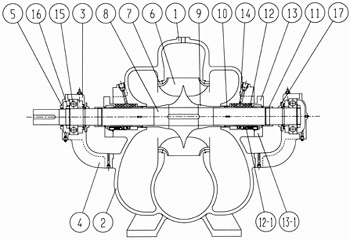

Part name
1

Volute cover

2

Volute casing

3

Upper bearing case

4

Lower bearing case

5

Bearing cover

6

Impeller

7

Liner ring

8

Shaft

9

Spacer

10

Sleeve

11

Sleeve nut

12

Gland packing

12-1

Mechanical seal

13

Gland

13-1

Mechanical seal cover

14

Seal ring

15

Bearing

16

Bearing nut

17

Deflector
