Double Suction Volute Pump

Double Suction Volute Pump
HD type

Horizontally split type with optional self-priming capability

Top page
& Site map
Contact us

Selection chart
HD type

Model number explanation
XXXX-##@@-xP (**)


: Pump type


: Suction/Discharge bore (cm)


: Head classification


: Electric motor pole number (2P, 4P, 6P, other)


: Electric motor output power (kW) at maximum performance (using normal water at normal temperature)

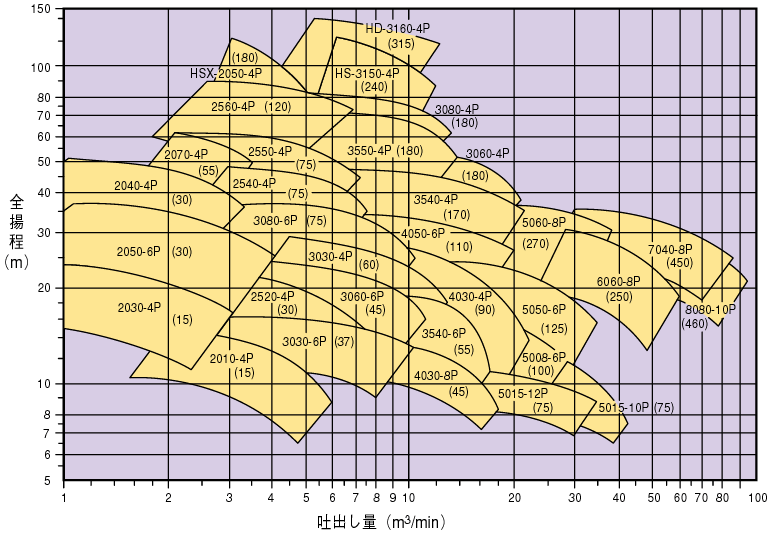

Double Suction Volute Pump HD 50Hz


HS and HSX types shown in the above selection chart are Horizontally Split Single Suction Centrifugal Pumps. For the structure and outer dimensions, please inquire.

We manufacture models other than the ones shown in the selection chart upon request.

Electric motor output shows required power when usage point is on the selection chart curve with normal water at normal temperature. If usage point is below the curve, please contact us.
