Selection chart & Outer dimensions

UENC type
Since the UENC type is the same as the UEN type except that the UENC type has non-contact shaft seal device, please refer to the UEN type regarding the selection chart and outer dimensions.


UEC-0420

Specifications
40mm/40mm x 0.183m³/min x 60m x 2950rpm x 7.5kW

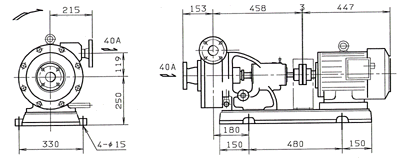

Dimensional outline drawing



UTC-0150

Specifications
20mm/15mm x 0.001m³/min x 85m x 2950rpm x 2.2kW

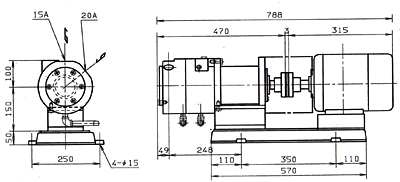

Dimensional outline drawing



Specifications stated here may be subject to change without notice due to product improvement.
