Vacuum pump built-in type UPM10-0510S Direct drive type / Belt drive type
/ Dolly type

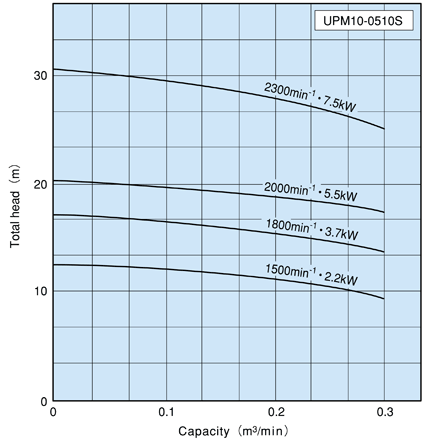

Selection chart
|
Model number explanation
UPXXX-##@@x.****.**
|
XXX
|
: MXX: Vacuum pump built-in, SXX: Vacuum pump separate
|
|
##
|
: Suction/Discharge bore (cm)
|
|
@@
|
: Head classification
|
|
x
|
: S: Semi-open main impeller, N: Non-clog main impeller
|
|
****.**
|
: Rotation speed of main impeller, Motor output power (kW) (using normal
water at normal temperature)
|
|
|
|
Required power shown above is based on normal water. Please inquire regarding
liquids with high viscosity or high specific gravity.
|
|
|
Please make sure that suction head is within 3m when using the vacuum pump
built-in type under 1500min-1.
|

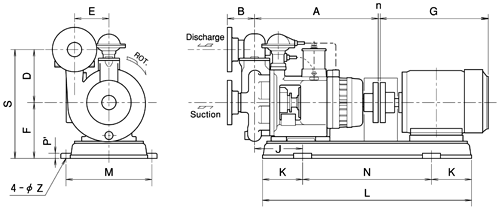

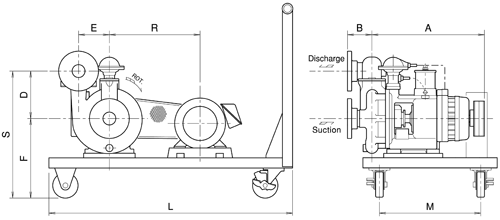

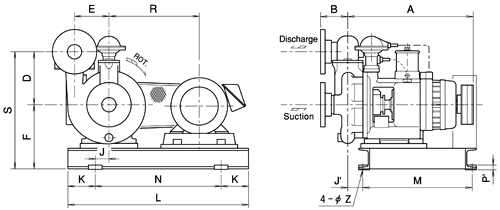

Outer dimensions
| Direct drive type |
|
|
|
Unit: mm
|
|
Model No.
|
Pump
|
Motor
|
Base plate
|
Weight
(kg)
|
|
Bore
|
A
|
B
|
D
|
E
|
F
|
S
|
(kW)
|
Pole
number
|
G
|
n
|
J
|
K
|
N
|
L
|
M
|
P'
|
Z
|
|
M10-0510S
|
50
|
423
|
95
|
185
|
120
|
195
|
380
|
1.5
|
4
|
314
|
3
|
168
|
140
|
450
|
730
|
300
|
18
|
15
|
110
|
|
M10-0510S
|
50
|
423
|
95
|
185
|
120
|
195
|
380
|
2.2
|
4
|
348
|
3
|
168
|
140
|
450
|
730
|
300
|
18
|
15
|
120
|
|
M10-0510S
|
50
|
423
|
95
|
185
|
120
|
195
|
380
|
3.7
|
4
|
376
|
3
|
168
|
140
|
450
|
730
|
300
|
18
|
15
|
140
|
|
M10-0510S
|
50
|
423
|
95
|
185
|
120
|
205
|
390
|
5.5
|
4
|
445
|
3
|
168
|
150
|
480
|
780
|
330
|
25
|
19
|
175
|
|
M10-0510S
|
50
|
423
|
95
|
185
|
120
|
205
|
390
|
7.5
|
4
|
485
|
3
|
168
|
170
|
540
|
880
|
350
|
25
|
19
|
205
|
|
|
Flange standard is JIS 10K.
|
|
|
We also provide handle hose couplers.
|
|
Model No.
|
Pump
|
Motor
|
Base plate
|
Weight
(kg)
|
|
Bore
|
A
|
B
|
D
|
E
|
F
|
S
|
(kW)
|
Pole
number
|
G
|
R
|
J
|
J'
|
K
|
N
|
L
|
M
|
P'
|
Z
|
|
M10-0510S
|
50
|
440
|
95
|
185
|
120
|
219
|
404
|
1.5
|
4
|
-
|
520
|
25
|
20
|
125
|
600
|
850
|
370
|
20
|
15
|
120
|
|
M10-0510S
|
50
|
450
|
95
|
185
|
120
|
219
|
404
|
2.2
|
4
|
-
|
520
|
25
|
20
|
125
|
600
|
850
|
370
|
20
|
15
|
130
|
|
M10-0510S
|
50
|
450
|
95
|
185
|
120
|
219
|
404
|
3.7
|
4
|
-
|
520
|
25
|
20
|
125
|
600
|
850
|
370
|
20
|
15
|
140
|
|
M10-0510S
|
50
|
450
|
95
|
185
|
120
|
219
|
404
|
5.5
|
4
|
-
|
520
|
25
|
20
|
125
|
600
|
850
|
370
|
20
|
15
|
160
|
|
M10-0510S
|
50
|
470
|
95
|
185
|
120
|
219
|
404
|
7.5
|
4
|
-
|
520
|
25
|
20
|
125
|
600
|
850
|
370
|
20
|
15
|
170
|
|
|
Flange standard is JIS 10K.
|
|
|
We also provide handle hose couplers.
|
|
Model No.
|
Pump
|
Motor
|
Base plate
|
Weight
(kg)
|
|
Bore
|
A
|
B
|
D
|
E
|
F
|
S
|
(kW)
|
Pole
number
|
G
|
R
|
J
|
K
|
N
|
L
|
M
|
P'
|
Z
|
|
M10-0510S
|
50
|
440
|
95
|
185
|
120
|
241
|
426
|
1.5
|
4
|
-
|
385
|
-
|
-
|
-
|
700
|
410
|
-
|
-
|
120
|
|
M10-0510S
|
50
|
450
|
95
|
185
|
120
|
241
|
426
|
2.2
|
4
|
-
|
375
|
-
|
-
|
-
|
700
|
410
|
-
|
-
|
130
|
|
M10-0510S
|
50
|
450
|
95
|
185
|
120
|
241
|
426
|
3.7
|
4
|
-
|
360
|
-
|
-
|
-
|
700
|
410
|
-
|
-
|
140
|
|
M10-0510S
|
50
|
470
|
95
|
185
|
120
|
241
|
426
|
5.5
|
4
|
-
|
347
|
-
|
-
|
-
|
700
|
410
|
-
|
-
|
160
|
|
|
Flange standard is JIS 10K.
|
|
|
We also provide handle hose couplers.
|
|
