Vacuum pump mounted type UPS-N (Direct drive, Non-clog type)

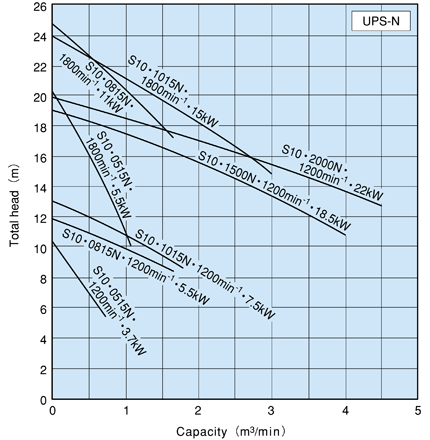

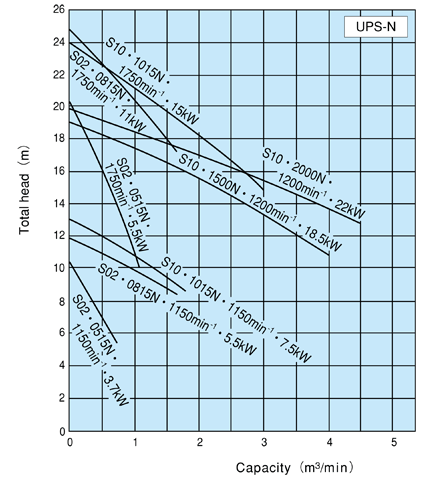

Selection chart

Model number explanation
UPXXX-##@@x.****.**

XXX

: MXX: Vacuum pump built-in, SXX: Vacuum pump separate

##

: Suction/Discharge bore (cm)

@@

: Head classification

x

: S: Semi-open main impeller, N: Non-clog main impeller

****.**

: Rotation speed of main impeller, Motor output power (kW) (using normal water at normal temperature)


Enhanced Self-Priming Pump

Required power shown above is based on normal water. Please inquire regarding liquids with high viscosity or high specific gravity.

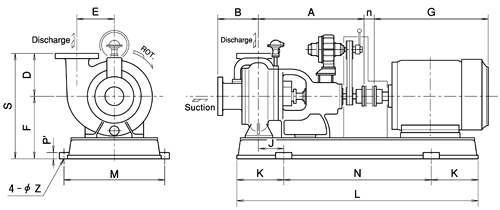

Outer dimensions

Enhanced Self-Priming Pump

Unit: mm

Model No.
Pump
Motor
Base plate
Weight
(kg)
Bore
A
B
D
E
F
S
(kW)
Pole number
G
n
J
K
N
L
M
P'
Z

S02-0515N

50

555

150

200

145

295

495

3.7

6

483

3

105

200

630

1030

430

27

19

240

S02-0515N

50

555

150

200

145

295

495

5.5

4

445

3

105

200

630

1030

430

27

19

265

S02-0815N

80

570

180

230

165

305

535

5.5

6

483

3

95

220

690

1130

525

30

19

310

S02-0815N

80

570

180

230

165

315

545

11

4

586

3

145

270

840

1380

525

30

19

370

S10-1015N

100

580

190

240

170

315

555

7.5

6

586

3

60

270

840

1380

525

30

19

355

S10-1015N

100

580

190

240

170

315

555

15

4

630

3

100

270

840

1380

525

30

19

425

S10-1500N

150

780

320

300

240

410

710

18.5

6

682

3

200

300

930

1530

525

30

23

700

S10-2000N

200

800

345

310

240

455

765

22

6

695

3

175

300

930

1530

525

30

23

710

Flange standard is JIS 10K.

We also have semi-open impeller (S) and closed impeller (C) instead of non-clog impeller (N) (UPS-0510S, 0520S, 0820S, 0830S, 0840S, 1055C, 1555C). Please ask for details.

We also manufacture non-self-priming/non-clog pumps UPL type by excluding vacuum pumps from the above models. Please ask for details.
