Non-Water Hammer Check Valve


Non-Water Hammer Check Valve
SL series
(PAT.)

No valve closure delay means no water hammer and no noise

Top page
& Site map
Contact us


SL-SH
SL-SHP
Swing type

P denotes that the check valve is equipped with a No-Feed Detector.


Even the large valves feature simple, single-disk construction (with a built-in counterweight), so highly reliable automatic pumping can be easily accomplished.

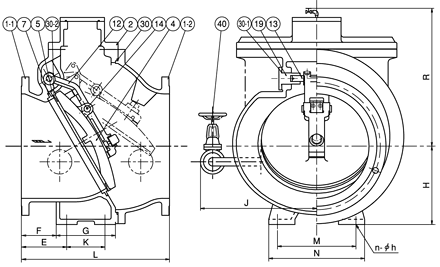

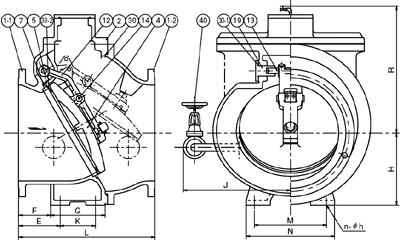

Non-Water Hammer Check Valve SL-SH

Unit: mm

Part name
Material code (JIS 10K, Waterworks standard)
H
N
X, Y
1-1

Inlet case

FCD
FCD
SCS
1-2

Outlet case

FCD
FCD
SCS
2

Valve cover

FCD
FCD
SCS
4

Valve disk

FCD
SCS
SCS
5

Valve liner

SUS
SUS
SUS
7

Valve seat

SUS
SUS
SUS
12

Valve arm

SCS
SCS
SCS
13

Valve arm pin

SUS
SUS
SUS
14

Valve pin

SUS
SUS
SUS
19

Pin holder

SCS
SCS
SCS
30

O-ring

NBR
NBR
NBR
30-1

O-ring

NBR
NBR
NBR
30-2

Seal ring

NBR
NBR
NBR
40

By-pass valve

FC/CAC406
FC/SUS
SCS
41

No-Feed Detector

(C3603)
(SUS)
(SUS)

Unit: mm

Bore
d
JIS 10K standard
weight
(kg)
L
H
J
R
E
F
G
K
M
N
n-h

500

800

370

580

750

250

180

340

200

400

500

4-23

800

600

850

450

680

825

260

200

340

220

450

550

4-23

1050

700

950

500

800

980

300

215

420

250

480

600

4-27

1900

800

1050

540

800

980

300

230

420

280

500

600

4-27

2000

900

1250

650

1000

1140

360

260

530

340

800

900

4-27

3000

1000

1300

650

1000

1140

410

310

530

340

800

900

4-27

3200

1200

1650

900

1255

1620

500

325

650

400

950

1050

4-35

4900

1350

1700

900

1255

1620

550

375

650

400

950

1050

4-35

7400

1500

2000

1000

1600

2100

550

400

800

500

1100

1200

4-39

9000

Note:

Material code X denotes SCS13, material code Y denotes SCS14.
We also manufacture other materials, such as FC and special duplex type stainless steel.

The No-Feed Detector is an optional part.

The valve arm and the valve disk form the counterweight.

Installation positions of the by-pass valve and the No-Feed Detector are on the right side when viewed from the inlet side.

May be used in vertical piping, but please pay attention to installation, maintenance and inspection.

The coil sleeve can be attached as an option.

Flange dimensions are based on JIS 10K or waterworks standard (equivalent to JIS B2062).

Applicable liquid temperature : 0-70 degree C
Please contact us if liquid temperature is more than 70 degree C.

Please contact us if flange standard is higher than JIS 16K.

Please contact us if a valve with a bore greater than 1500mm is required.

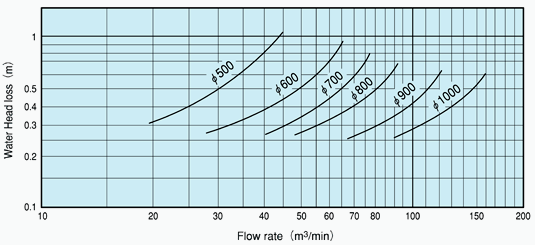

SL-SH type characteristics (Water head loss - Flow rate)

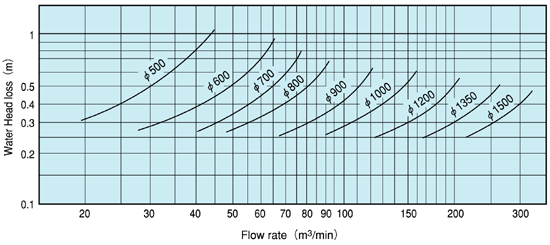

Non-Water Hammer Check Valve / Characteristics (Water head loss - Flow rate) SL-SH

Specifications stated here may be subject to change without notice due to product improvement.
