For force pumping with high performance and easy operation:
|
UEN type
|
|
For high density slurry:
|
UET type
|
|

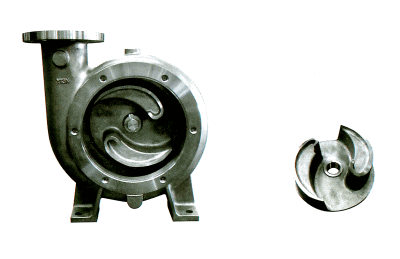

Non-clogging impeller:
|
YNC type
|
|
|
Outstanding pumping performance
|
|
This single-suction, single-stage centrifugal pump displays outstanding
pumping performance in a wide range of specifications.
|
|
|
Large selection of materials
|
|
A wide variety of materials are available, including FC, SCS and YOKOTA's corrosion and wear resistant special stainless steel casting (YST), to meet the needs of various kinds of liquid.
|
|
|
Construction that can meet a wide range of specifications
|
|
Standard constructions include semi-open impellers for small pumps and
closed impellers for medium and larger pumps.
|
|
The impeller has been improved to form ideal blades for high efficiency.
|
|
An oil bath lubrication system is adopted for bearings.
|
|
Maintenance is easy to perform because construction is simple and the number
of parts in the water passage section is minimized.
|
|
|
Stable quality
|
|
All special material products are manufactured internally in a continuous
process to ensure stable quality.
|
Applications
|
Chemical industry:
|
Acids, Alkaline liquids, Solvents, Slurry liquids, other
|
|
Food industry:
|
Brewery, Sugar refining, other
|
|
Mining industry:
|
Seawater, Slurry liquids, other
|
|
Paper industry:
|
Pulp, Effluent, White water, Black water, other
|
|
Electric power:
|
Exhaust gas desulfurizer (Limestone slurry pumps, other), Seawater, Water
treatment, other
|
|
Electronic industry:
|
Ultra-pure water manufacturing devices, Acidic waste water, Polishing waste
water treatment, other
|
|
Aquarium, Fish farming:
|
Seawater suction, Circulation pumps, other
|
|
Others:
|
Hot springs, Hot oil, other
|
Example applications and installations
|
|
Seawater pump UEN type made of YST Alloy
operating at seawater treatment plant
|
|
|
|
|
Slurry pump UET type made of YST Alloy
operating at power plant
|
|
For details of the YOKOTA YST Alloy, please refer to Special Stainless Steel YST series, Seawater Resistant Stainless Steel YST130N.
This is a non-self-priming type pump for force pumping.
For self-priming type (for suction pumping) with similar specifications,
please refer to Self-Priming Centrifugal Pump UHN series.
|
|
Structure
UEN type
|
|
|
|
|
Nut type
|
Cap-nut type
|
Shaft-seal type
|
|
| Part name |
Part name |
Part name |
Part name |
|
1
|
Casing
|
18
|
Seal ring
|
27-1
|
O-ring
|
39
|
Sleeve packing
|
|
2
|
Suction cover
|
191
|
Impeller nut
|
28
|
Impeller key
|
40
|
Sleeve key
|
|
4
|
Impeller
|
192
|
Impeller nut
|
29
|
Coupling key
|
41
|
Pan (Option)
|
|
6
|
Liner ring |
201
|
Impeller washer
|
30
|
Casing packing
|
42
|
Bearing nut
|
|
10
|
Bearing bracket
|
202
|
Spring washer
|
31
|
Gland bush
|
43
|
Bearing washer
|
|
11
|
Front bearing cover
|
21
|
Ball bearing
|
32
|
O-ring
|
44
|
Support ring
|
|
12
|
Rear bearing cover
|
22
|
Ball bearing
|
33
|
O-ring
|
47
|
V-ring
|
|
14
|
Gland
|
231
|
Stop ring
|
35
|
Oil level gauge
|
48
|
O-ring
|
|
15
|
Shaft
|
232
|
Stop ring
|
361
|
Bearing packing
|
|
|
|
16
|
Impeller spacer
|
25
|
Gland packing
|
362
|
Bearing packing
|
|
|
|
17
|
Sleeve
|
27
|
Deflector
|
37
|
Oil cap
|
|
|
|
|
Shaft seal
|
Gland packing
External flushing type is used for contaminated water
pumping or suction pumping.
|
Non-External-Flushing Mechanical Seal
No need of external sealing water and applicable to any kind of liquid.
|
|
|
|
Mechanical seal
Various types of mechanical seals can be installed.
|
Mechanical seal (oil bath)
Oil-bath lubrication allows dry operation.
|
|
|
|
|
We can also provide double mechanical seals.
|
Materials
|
Part name
|
Material code
|
|
F
|
X
|
Y
|
N
|
R
|
|
Casing
|
FC200
|
SCS13
|
SCS14
|
YST130N
|
CCR10
|
|
Impeller
|
SCS13
|
SCS13
|
SCS14
|
YST130N
|
CCR10
|
|
Shaft
|
SUS304
|
SUS304
|
SUS316
|
SUS316
|
SUS304
|
|
|
Special material products are manufactured internally in a thoroughly continuous
process from casting under complete material and heat-treatment control.
|
|
|
YOKOTA's corrosion and wear resistant special stainless steel casting (YST)
has been adopted for anti-pollution devices, seawater pumps, and other
pumps, acquiring highly reputable results.
For details, please refer to Special Stainless Steel YST series.
|
|
UET type:
|
High corrosion and wear resistance type for high density slurry
|
|
|
|
The front and rear plates (wear resistant plates) are installed to protect
the casing. |
|
|
|
Specification:
|
Economical selections can be made from a wide variety of models similar
to the UEN type.
|
|
|
Performance:
|
Impeller configuration can be selected depending on use.
|
|
|
Material:
|
A wide variety of materials, such as YOKOTA's corrosion and wear resistant
special stainless steel casting (YST), are available.
|
|
|
Construction:
|
Wear resistant plates are installed for handling high density slurry.
|
|
|
Shaft seal:
|
Gland packing, mechanical seals and Non-External-Flushing Mechanical Seals
can be selected depending on use.
|
|
YNC type:
|
Impeller is non-clogging type
|
|
|
|

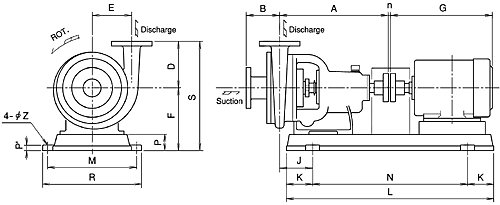

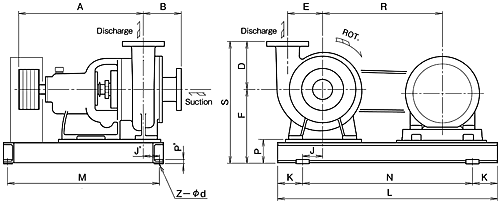

Selection chart & Outer dimensions
Specifications stated here may be subject to change without notice due
to product improvement.
|
|
