Vacuum pump separate type UPS-N (Belt drive, Non-clog type)

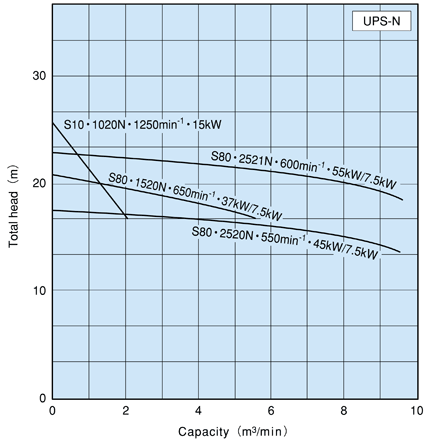

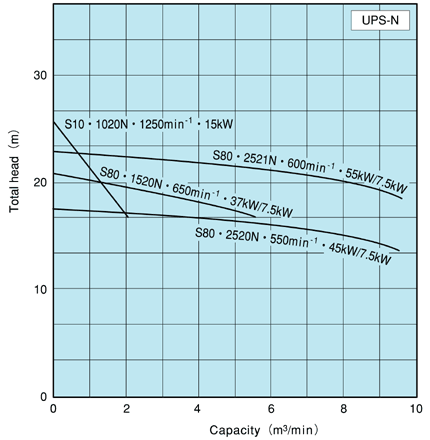

Selection chart
|
Model number explanation
UPXXX-##@@x.****.**
|
XXX
|
: MXX: Vacuum pump built-in, SXX: Vacuum pump separate
|
|
##
|
: Suction/Discharge bore (cm)
|
|
@@
|
: Head classification
|
|
x
|
: S: Semi-open main impeller, N: Non-clog main impeller
|
|
****.**
|
: Rotation speed of main impeller, Motor output power (kW) (using normal
water at normal temperature)
|
|
|
|
Required power shown above is based on normal water. Please inquire regarding
liquids with high viscosity or high specific gravity.
|

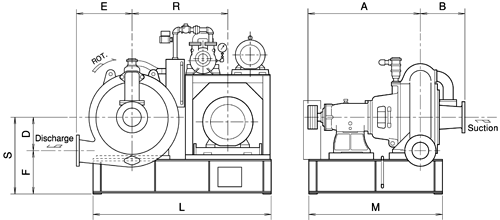

Outer dimensions
|
|
Unit: mm
|
|
Model No.
|
Pump
|
Motor
|
Base plate
|
Weight
(kg)
|
|
Bore
|
A
|
B
|
D
|
E
|
F
|
S
|
(kW)
|
Pole
number
|
G
|
R
|
J
|
K
|
N
|
L
|
M
|
P'
|
Z
|
|
S10-1020N
|
100
|
-
|
-
|
-
|
-
|
-
|
-
|
15
|
4
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
640
|
|
S80-1520N
|
150
|
1090
|
400
|
300
|
480
|
600
|
900
|
37/7.5
|
6/4
|
800
|
900
|
-
|
-
|
-
|
1600
|
1150
|
-
|
-
|
2100
|
|
S80-2520N
|
250
|
1150
|
460
|
350
|
600
|
570
|
920
|
45/7.5
|
6/4
|
850
|
1050
|
-
|
-
|
-
|
1900
|
1400
|
-
|
-
|
3000
|
|
S80-2521N
|
250
|
1150
|
460
|
350
|
600
|
570
|
920
|
55/7.5
|
6/4
|
900
|
1050
|
-
|
-
|
-
|
1900
|
1400
|
-
|
-
|
3100
|
|
|
Flange standard is JIS 10K.
|
|
|
As for S10-1020N, vacuum pump mounted type is standard.
|
|
|
S80 model has an operation panel as standard accessory.
|
|
