High head type with high performing self-priming mechanism
Selection chart
USM, UBM types
Model number explanation
XXXX-$-##@@
XXXX
: Pump type
$
: Number of stages
##
: Suction/Discharge bore (cm)
@@
: Head classification
In the selection chart below, pumps are grouped by bore size, and the reference
number $-(**) within each group is shown.
$
: Number of stages
(**)
: Electric motor output power (kW) at maximum performance (using normal
water at normal temperature)
Orange-colored area shows USM type (with 4-pole motor).
Green-colored area shows UBM type (with 4-pole motor).

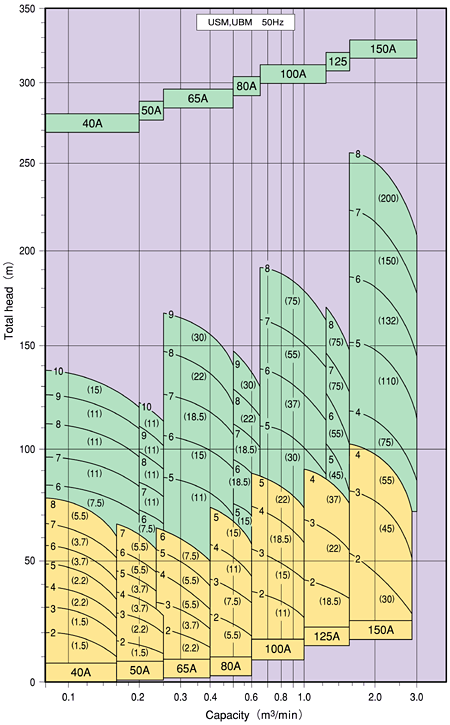

50Hz

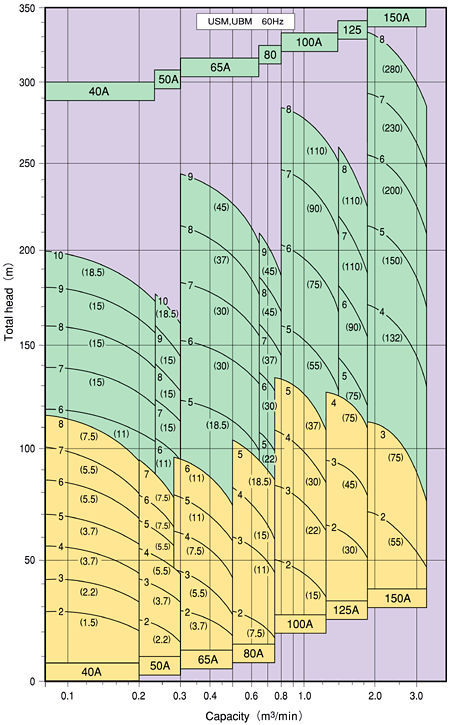

60Hz

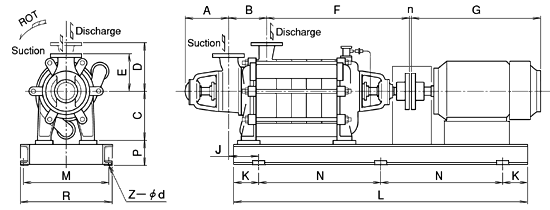

Outer dimensions
USM type
Unit: mm
Model No.
Bore
Suction/
Discharge
Pump
Weight
(kg)
Motor
Base plate
A
B
F
C
D
E
n
Frame
No.
G
J
Z-d
K
N
L
M
R
P
USM-2-0413
40/40
141
150
276
175
215
145
3
63
90L
313.5
82
4-15
106
540
752
315
350
50
3-0413
40/40
141
150
326
175
215
145
3
77
100L
361.5
145
4-15
106
540
752
315
350
50
4-0413
40/40
141
150
376
175
215
145
3
83
112M
376
80
4-15
128
705
960
304
380
52
5-0413
40/40
141
150
426
175
215
145
3
104
112M
376
130
4-15
128
705
960
304
380
52
6-0413
40/40
150
150
497
175
215
145
3
120
132S
446.5
169
4-15
128
705
960
304
380
52
7-0413
40/40
150
150
547
175
215
145
3
135
132S
446.5
240
4-15
220
690
1130
525
575
100
8-0413
40/40
150
150
597
175
215
145
3
150
132M
484.5
240
4-15
220
690
1130
525
575
100
USM-2-0513
50/50
141
150
276
175
215
145
3
64
100L
361.5
95
4-15
106
540
752
315
350
50
3-0513
50/50
141
150
326
175
215
145
3
80
112M
376
45
4-19
128
705
960
340
380
52
4-0513
50/50
141
150
376
175
215
145
3
92
132S
446.5
80
4-19
128
705
960
340
380
52
5-0513
50/50
141
150
426
175
215
145
3
110
132S
446.5
159
4-19
128
705
960
340
380
52
6-0513
50/50
150
150
497
175
215
145
3
130
132M
484.5
230
4-19
200
630
1030
430
470
90
7-0513
50/50
150
150
574
175
215
145
3
150
132M
484.5
240
4-19
220
690
1170
525
575
100
USM-2-0611
65/65
138
188
294
205
250
160
3
100
112M
376
155
4-19
106
540
752
315
350
50
3-0611
65/65
138
188
349
205
250
160
3
114
132S
446.5
120
4-19
128
705
960
340
380
52
4-0611
65/65
138
188
404
205
250
160
3
130
132M
484.5
185
4-19
128
705
960
340
380
52
5-0611
65/65
138
188
459
205
250
160
3
145
160M
526
160
4-19
250
825
1325
450
490
80
6-0611
65/65
138
188
534
205
250
160
3
160
160M
526
232
4-19
270
840
1390
525
575
110
USM-2-0810
80/80
189
205
379
230
270
190
3
120
132M
484.5
25
4-19
250
825
1325
450
490
80
3-0810
80/80
189
205
444
230
270
190
3
145
160M
526
90
4-19
250
825
1325
450
490
80
4-0810
80/80
189
205
509
230
270
190
3
171
160M
526
200
4-19
250
825
1325
450
490
80
5-0810
80/80
189
205
574
230
270
190
3
200
160L
619
280
4-19
270
840
1380
525
575
110
USM-2-1010
100/100
189
240
377
270
280
220
3
175
160L
619
120
4-19
250
825
1325
450
490
80
3-1010
100/100
189
240
452
270
280
220
4
200
180M
646
244
4-19
300
855
1455
585
625
80
4-1010
100/100
189
240
527
270
280
220
4
230
180L
684
320
4-19
300
855
1455
585
625
80
5-1010
100/100
189
240
602
270
280
220
4
270
180L
684
320
4-19
300
855
1455
585
625
80
USM-2-1210
125/125
290
264
526
325
325
250
4
325
180L
684
340
4-23
300
930
1530
525
575
110
3-1210
125/125
290
264
616
325
325
250
4
360
200L
761.5
340
4-23
300
930
1530
525
575
110
4-1210
125/125
290
264
706
325
325
250
4
380
225S
908
205
6-23
150
750
1800
590
650
170
USM-2-1510
150/150
322
317
600
385
375
275
4
470
200M
807.5
320
4-19
250
1100
1600
450
500
150
3-1510
150/150
322
317
700
385
375
275
4
560
250S
908
300
4-23
250
1200
1700
450
500
145
4-1510
150/150
322
317
800
385
375
275
4
650
225S
812
200
6-23
150
750
1800
490
550
170
