Double Suction Volute Pump
HD type
Horizontally split type with optional self-priming capability
|
|
|
|
|
Wide range of use
|
|
With high efficiency and low NPSHreq., stable operation is secured over
a wide range of total head and capacity.
|
|
|
Easy maintenance
|
|
Casing is horizontally split and inner parts can be inspected by removing
only the upper cover without disassembling piping and bearings.
|
|
|
Large selection of materials
|
|
A wide variety of materials are available, including FC, SCS and YOKOTA's corrosion and wear resistant special stainless steel casting (YST), to meet the needs of various kinds of liquid.
|
|
|
Enhanced self-priming is also possible (Optional)
|
|
By interlocking the unique vacuum pump with a water-air separating mechanism
(PAT.), self-priming even with suction piping across an embankment is possible,
which enables automatic pumping operation.
|
Applications
|
|
|
Industrial water supply
|
|
Waterworks, Sewage
|
|
Agricultural irrigation
|
|
Cooling water circulation
|
|
General water supply/drainage
|
|
Other
|
Example applications and installations

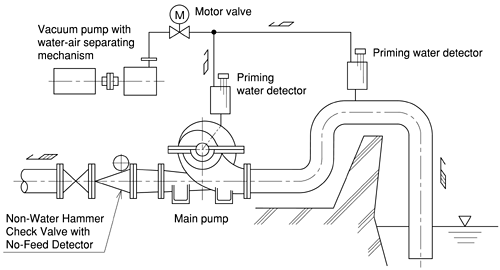

Automatic operation system with enhanced self-priming |
For details, please refer to "Current Topics: Seawater Intake".
|
|
|

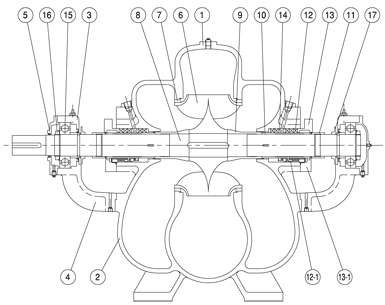

Structure
 |
|
|
Part name
|
|
1
|
Volute cover
|
|
2
|
Volute casing
|
|
3
|
Upper bearing case
|
|
4
|
Lower bearing case
|
|
5
|
Bearing cover
|
|
6
|
Impeller
|
|
7
|
Liner ring
|
|
8
|
Shaft
|
|
9
|
Spacer
|
|
10
|
Sleeve
|
|
11
|
Sleeve nut
|
|
12
|
Gland packing
|
|
12-1
|
Mechanical seal
|
|
13
|
Gland
|
|
13-1
|
Mechanical seal cover
|
|
14
|
Seal ring
|
|
15
|
Bearing
|
|
16
|
Bearing nut
|
|
17
|
Deflector
|
|
|
|
Selection chart & Outer dimensions
|

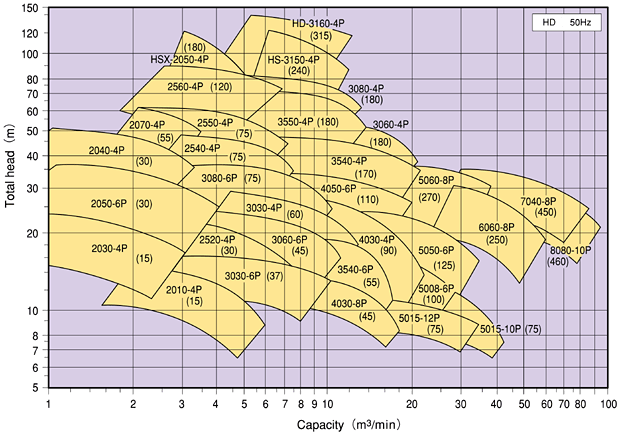

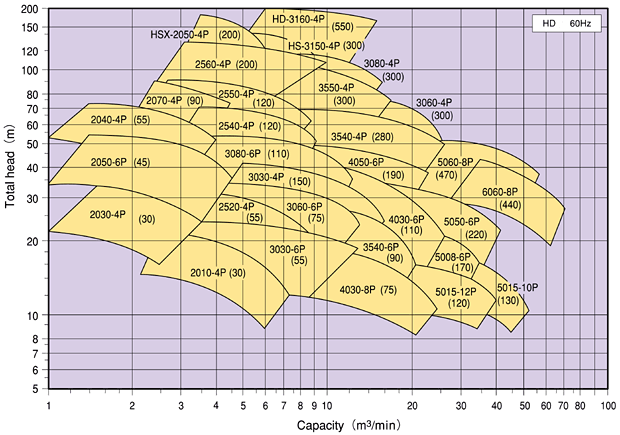

Selection chart
HD type
Model number explanation
XXXX-##@@-xP (**)
|
XXXX
|
: Pump type
|
|
##
|
: Suction/Discharge bore (cm)
|
|
@@
|
: Head classification
|
|
xP
|
: Electric motor pole number (2P, 4P, 6P, other)
|
|
(**)
|
: Electric motor output power (kW) at maximum performance (using normal
water at normal temperature)
|
|
|
Note:
|
|
|
HS and HSX types shown in the above selection chart are Horizontally Split
Single Suction Centrifugal Pumps. For the structure and outer dimensions,
please inquire.
|
|
|
We manufacture models other than the ones shown in the selection chart
upon request.
|
|
|
Electric motor output shows required power when usage point is on the selection
chart curve with normal water at normal temperature. If usage point is
below the curve, please contact us.
|
|
|

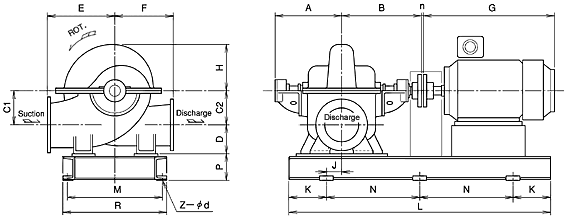

Outer dimensions
HD type
|
|
 |
|
Model No.
|
Bore
Suction/
Discharge
|
Pump
|
Weight
(kg)
|
Motor
(Reference)
|
Base plate
|
|
A
|
B
|
C1
|
C2
|
D
|
E
|
F
|
H
|
n
|
Frame
No.
|
G
|
J
|
K
|
N
|
L
|
M
|
R
|
P
|
Z-d
|
|
HD-2010
|
200/200
|
360
|
440
|
195
|
195
|
185
|
370
|
300
|
245
|
4
|
280
|
180L
|
685
|
55
|
150
|
1000
|
1300
|
460
|
500
|
115
|
4-19
|
|
-2030
|
200/150
|
465
|
555
|
180
|
180
|
170
|
360
|
320
|
210
|
4
|
350
|
180L
|
685
|
40
|
200
|
1000
|
1400
|
550
|
600
|
150
|
4-23
|
|
-2040
|
200/150
|
445
|
560
|
210
|
230
|
190
|
390
|
360
|
260
|
4
|
380
|
225S
|
815
|
-20
|
250
|
1200
|
1700
|
700
|
750
|
150
|
4-23
|
|
-2050
|
200/150
|
570
|
692
|
260
|
290
|
190
|
440
|
400
|
315
|
4
|
360
|
225S
|
815
|
115
|
150
|
800
|
1900
|
740
|
800
|
180
|
6-23
|
|
-2070
|
200/100
|
495
|
610
|
210
|
260
|
170
|
410
|
350
|
275
|
4
|
430
|
250M
|
970
|
-20
|
250
|
1200
|
1700
|
600
|
650
|
150
|
4-23
|
|
-2520
|
250/200
|
478
|
602
|
230
|
230
|
200
|
450
|
350
|
260
|
4
|
490
|
225S
|
815
|
5
|
250
|
1100
|
1600
|
650
|
700
|
150
|
4-23
|
|
-2540
|
250/200
|
520
|
602
|
265
|
230
|
190
|
320
|
450
|
300
|
4
|
490
|
280M
|
1080
|
30
|
250
|
1200
|
1700
|
600
|
650
|
150
|
4-23
|
|
-2550
|
250/200
|
551
|
655
|
270
|
270
|
220
|
470
|
380
|
305
|
4
|
460
|
280M
|
1080
|
190
|
150
|
800
|
1900
|
740
|
800
|
180
|
6-23
|
|
-2560
|
250/150
|
595
|
703
|
300
|
300
|
205
|
470
|
420
|
358
|
4
|
510
|
355M
|
1800
|
150
|
200
|
900
|
2200
|
740
|
800
|
180
|
6-23
|
|
-3030
|
300/250
|
520
|
600
|
230
|
230
|
200
|
450
|
350
|
310
|
4
|
480
|
315L
|
1250
|
115
|
150
|
750
|
1800
|
640
|
700
|
170
|
6-23
|
|
-3060
|
300/250
|
553
|
688
|
270
|
270
|
230
|
400
|
480
|
360
|
5
|
720
|
355L
|
1800
|
170
|
200
|
900
|
2200
|
740
|
800
|
180
|
6-23
|
|
-3080
|
300/250
|
640
|
765
|
300
|
300
|
200
|
500
|
450
|
390
|
5
|
740
|
355L
|
1800
|
120
|
250
|
1100
|
2700
|
840
|
900
|
230
|
6-25
|
|
-3160
|
300/200
|
600
|
725
|
325
|
365
|
200
|
620
|
510
|
510
|
5
|
1210
|
500
|
1650
|
90
|
300
|
1200
|
3000
|
1030
|
1100
|
285
|
6-27
|
|
-3540
|
350/300
|
660
|
800
|
310
|
310
|
280
|
580
|
450
|
350
|
5
|
1200
|
355L
|
1800
|
220
|
200
|
1100
|
2600
|
840
|
900
|
230
|
6-25
|
|
-3550
|
350/250
|
570
|
695
|
270
|
320
|
180
|
520
|
450
|
365
|
5
|
1100
|
355L
|
1800
|
30
|
300
|
1100
|
2800
|
890
|
950
|
230
|
6-25
|
|
-4030
|
400/300
|
690
|
815
|
310
|
310
|
270
|
570
|
480
|
410
|
5
|
1150
|
315L
|
1250
|
220
|
200
|
900
|
2200
|
840
|
900
|
180
|
6-23
|
|
-4050
|
400/300
|
665
|
800
|
350
|
350
|
250
|
550
|
650
|
520
|
5
|
1100
|
315L
|
1250
|
200
|
250
|
1000
|
2500
|
840
|
900
|
210
|
6-23
|
|
-5008
|
500/450
|
690
|
815
|
345
|
345
|
300
|
560
|
700
|
450
|
5
|
1200
|
315L
|
1250
|
280
|
200
|
950
|
2300
|
940
|
1000
|
210
|
6-23
|
|
-5015
|
500/450
|
830
|
952
|
480
|
480
|
320
|
950
|
650
|
580
|
5
|
1800
|
355L
|
1800
|
365
|
300
|
900
|
3300
|
1080
|
1150
|
280
|
8-27
|
|
-5050
|
500/450
|
709
|
883
|
430
|
450
|
380
|
775
|
550
|
490
|
5
|
2000
|
355L
|
1800
|
270
|
200
|
700
|
2500
|
1040
|
1100
|
230
|
8-25
|
|
-5060
|
500/450
|
897
|
1071
|
500
|
500
|
320
|
900
|
700
|
635
|
6
|
3000
|
450S
|
2100
|
265
|
350
|
1000
|
3700
|
1130
|
1200
|
280
|
8-27
|
|
-6060
|
600/500
|
885
|
1075
|
490
|
540
|
400
|
900
|
650
|
680
|
6
|
3000
|
450S
|
2100
|
265
|
350
|
1000
|
3700
|
1250
|
1320
|
280
|
8-27
|
|
-7040
|
700/600
|
1023
|
1200
|
570
|
630
|
420
|
1100
|
800
|
690
|
6
|
3900
|
450S
|
2100
|
365
|
325
|
1050
|
3800
|
1730
|
1800
|
280
|
8-27
|
|
-8080
|
800/600
|
980
|
1200
|
630
|
700
|
500
|
1200
|
850
|
802
|
6
|
4800
|
500L
|
2300
|
315
|
300
|
775
|
3700
|
1700
|
1630
|
300
|
10-34
|
|
Note:
|
|
|
Outer dimensions refer only to electric motors at maximum motor output,
therefore there may be differences in outer dimensions. For details on
related dimensional outline drawings, please contact us.
|
|
|
For information on the automatic operation system using our enhanced self-priming
method, please contact us. We design and manufacture the control system
in accordance with operational conditions.
|
|
Specifications stated here may be subject to change without notice due
to product improvement.
|
