Constant Flow Regulator Valve


Constant Flow Regulator Valve
UF series
(PAT.)

Easy flow rate setting and outstanding constant flow characteristics

Top page
& Site map
Contact us


Selection chart & Outer dimensions

UFT type (Upward discharge type)

Specifications/Performance

Inlet pressure (Primary pressure)

Max. 1MPa (For JIS 10K standard)

Applicable liquid

Various liquids at temperatures of 0-70 degree C (Please inquire for special liquids.)

Flange standard JIS 10K, JIS B2062 Waterworks standard

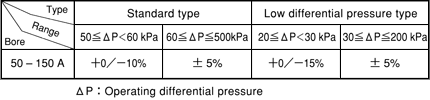

Flow rate accuracy




Constant Flow Regulator Valve / UFT type (Upward discharge type)

Unit: mm

Bore
Model
No.
Maximum flow rate
Outer dimensions
Flange
Waterworks, JIS B2062
Weight
Standard type
Low differential pressure type
(m3/min)
(l/sec)
(m3/min)
(l/sec)
A
B
H
D
C
n-h
(kg)

50

UFT-50R

0.27

4.5

0.14

2.4

230

160

614

155

120

4-19

20

80

80R

0.68

11

0.37

6

230

160

614

211

168

4-19

22

100

100R

1.20

20

0.66

11

285

195

667

238

195

4-19

70

150

150R

2.70

45

1.49

25

405

245

762

290

247

6-19

110

Note:

The minimum flow rate while in continuous use should be more than 10% of the maximum flow rate.

The dimension H indicates the maximum length when operating. The valve can be disassembled upwards.

The model No. of low differential pressure type valves is followed by "L". (e.g. UFT-150L)

The flange dimensions show the waterworks standard. However, for valves with a 50mm bore, JIS 10K FF flange standard is used because there is no other applicable standard. If JIS 10K FF flange is required for valves with other bore sizes, please contact us.

We also manufacture valves with other specifications not listed above upon request. Please inquire.



Specifications stated here may be subject to change without notice due to product improvement.
